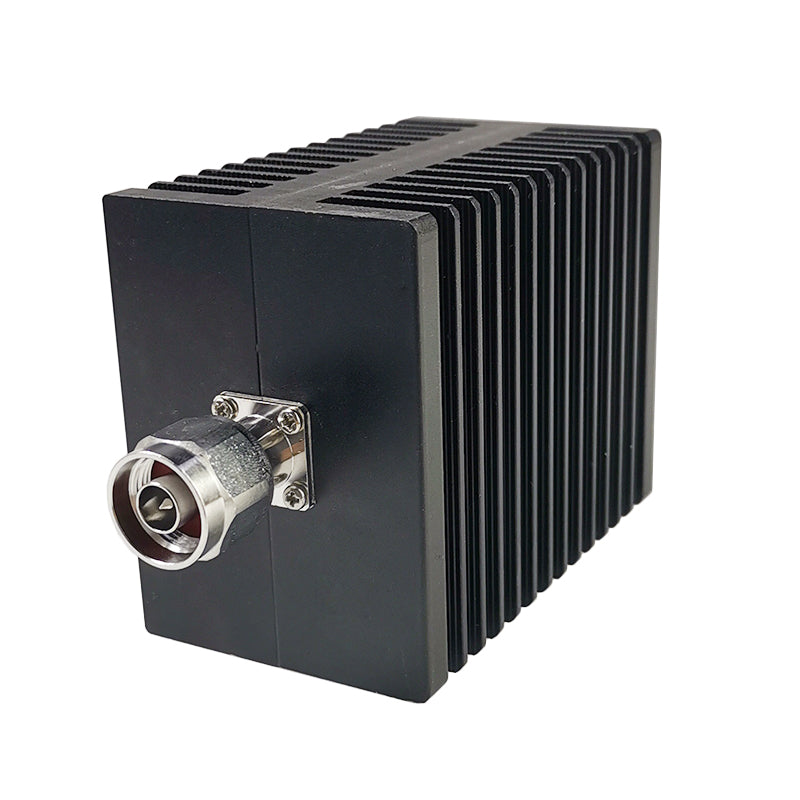

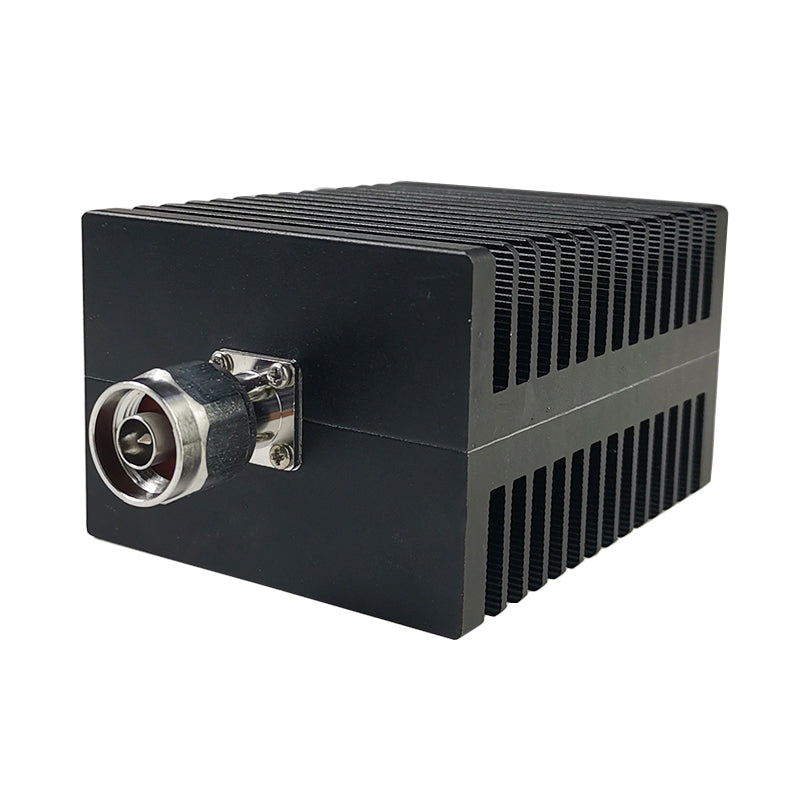

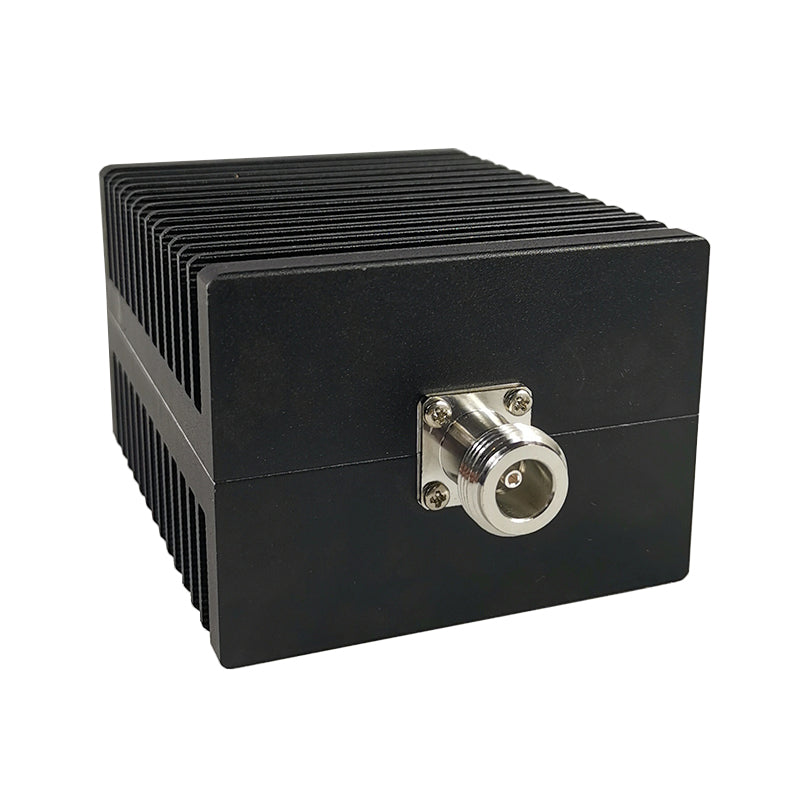

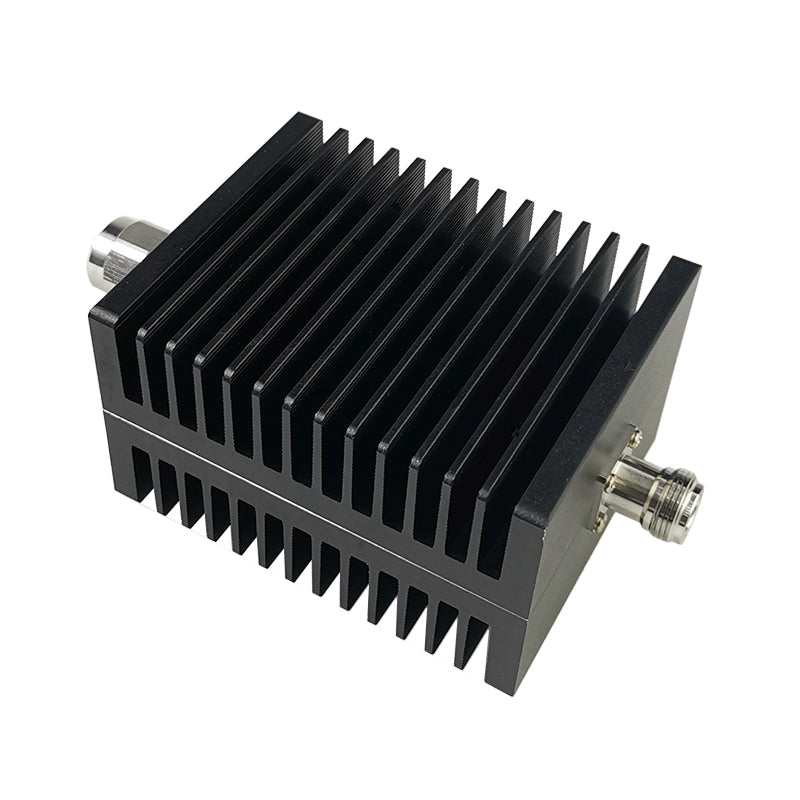

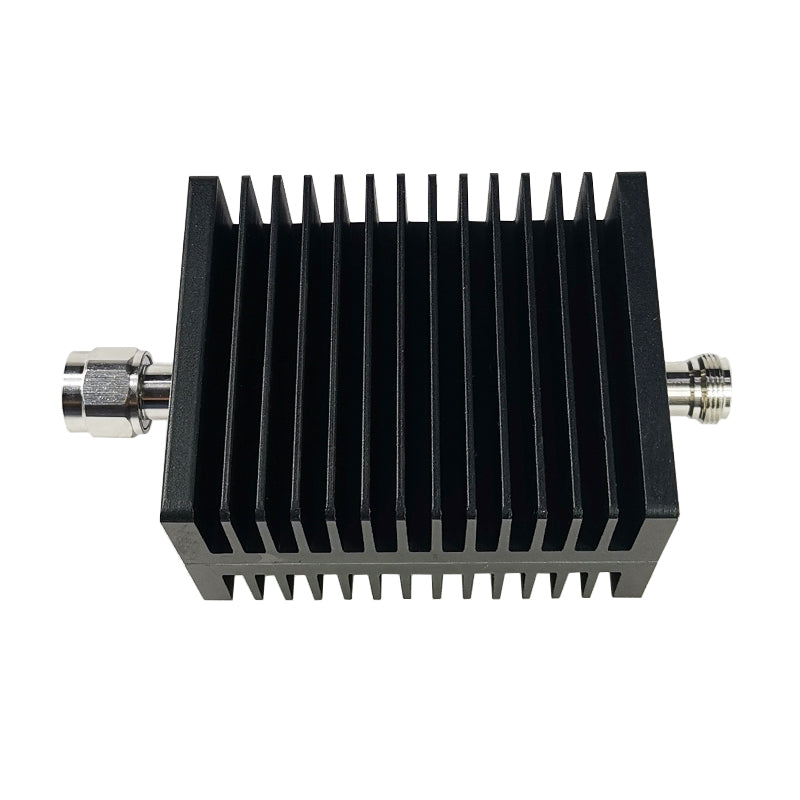

High Power 100W N-JK/DIN-JK Male to Female RF Fixed Attenuator 1-60dB 3G/4G
High Power 100W N-JK/DIN-JK Male to Female RF Fixed Attenuator 1-60dB 3G/4G
Couldn't load pickup availability
| Specification | Parameter |
|---|---|
| Model | BC-AT100-03 |
| Power | 100W |
| Connector | N-JK/DIN-JK |
| Frequency Range | DC-3GHz/4GHz |
| Attenuation | 1-60dB Available, and 1-10dB.±0.5dB,15-30dB±1dB, 40-60dB±1.5dB |
| VSWR (MAX) | 1.2:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |
| Dimension | 146*79.5*60mm |
| Weight | 1.5Kg |
