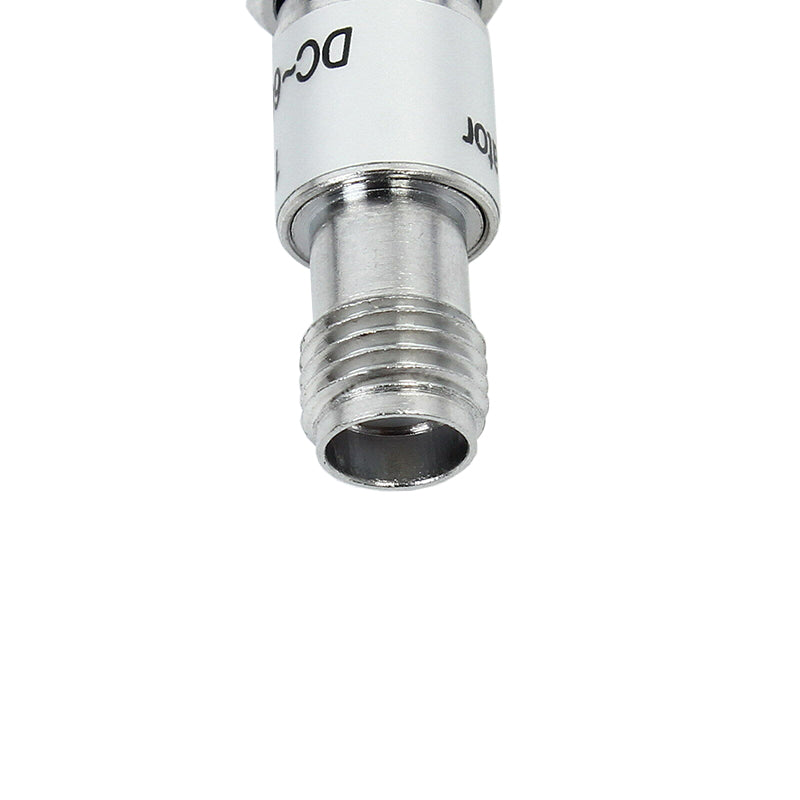

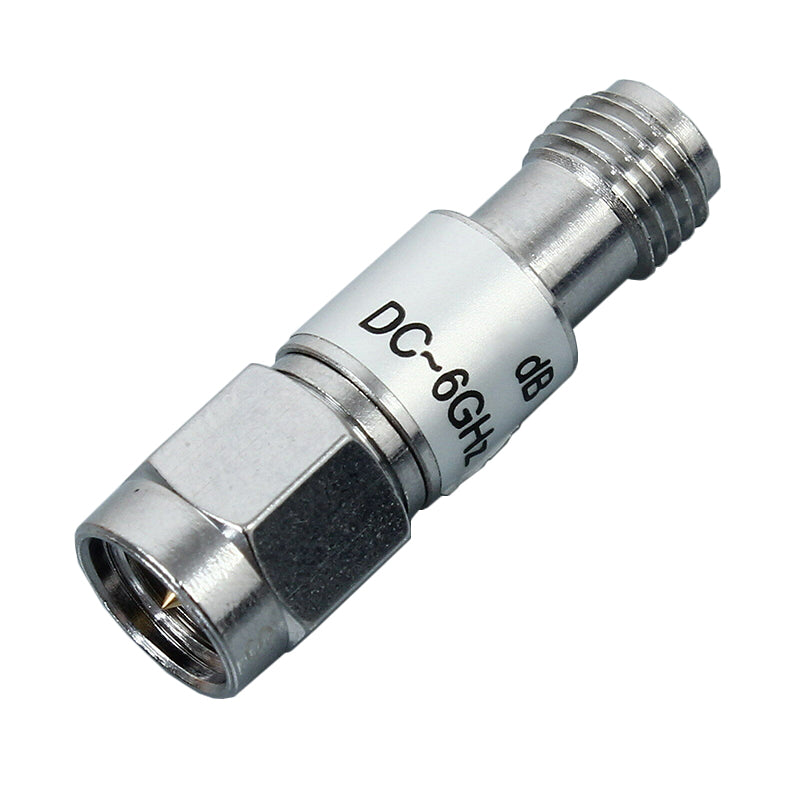

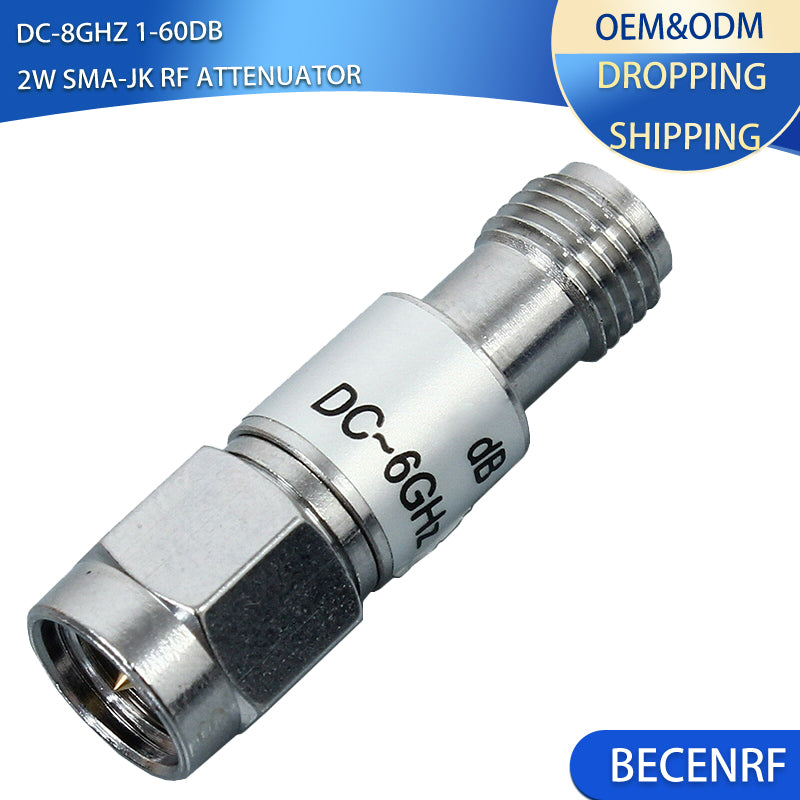

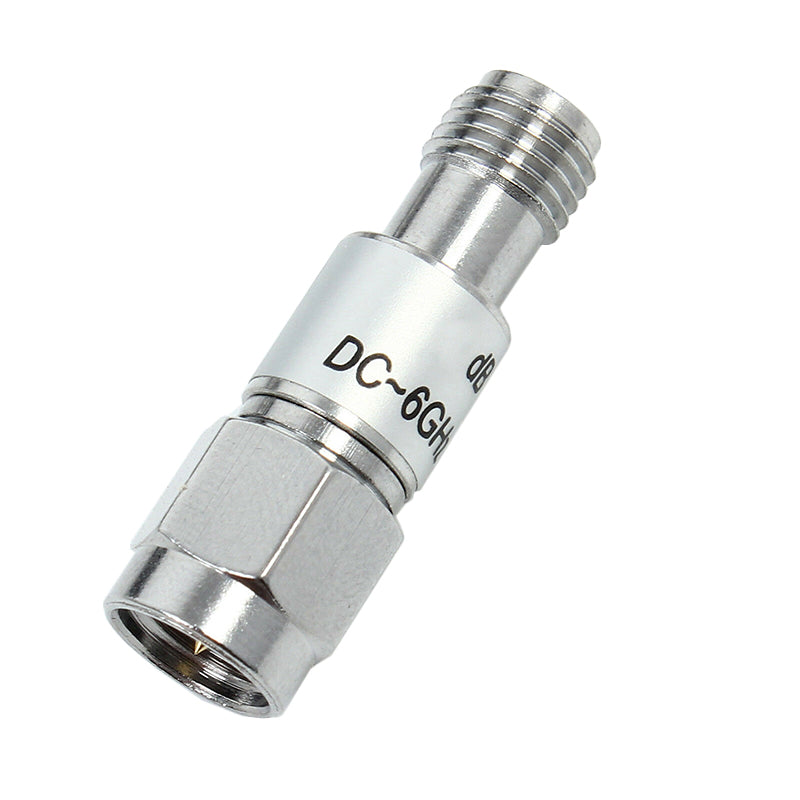

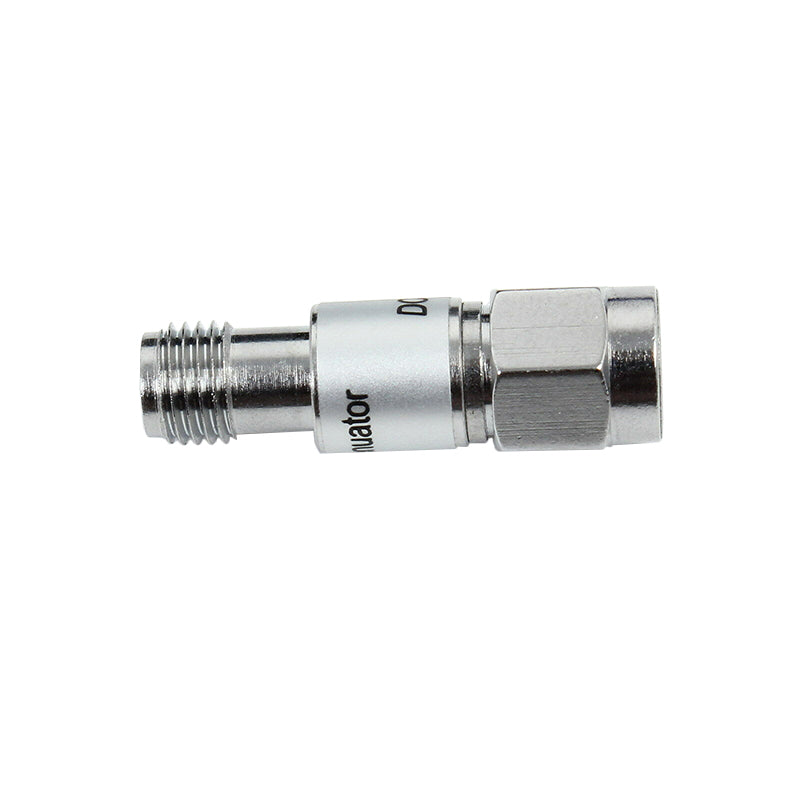

DC-8G Copper gold 2W SMA rf Fixed Attenuator 1/2/3/5/6/10/15/20/30/40/50/60dB 2 Watt
DC-8G Copper gold 2W SMA rf Fixed Attenuator 1/2/3/5/6/10/15/20/30/40/50/60dB 2 Watt
Couldn't load pickup availability
|
Frequency Range |
DC-8GHz（0-8000MHz） |
|
Attenuation |
1dB to 60dB |
|
Attenuation Accuracy |
1-20dB±0.75dB@8G.30dB±1dB. 40,50dB±1.5dB,60dB±1.8dB. |
|
VSWR |
<1:1.3 |
|
Power |
2W |
|
Nominal Impedance |
50ohm |
|
Connector type |
SMA-JK |
|
Size |
Φ7.5mm×26mm; Φ7.5mm×32.5mm(50dB,60dB) |
|
Operating Temperature |
-20~115℃ |
