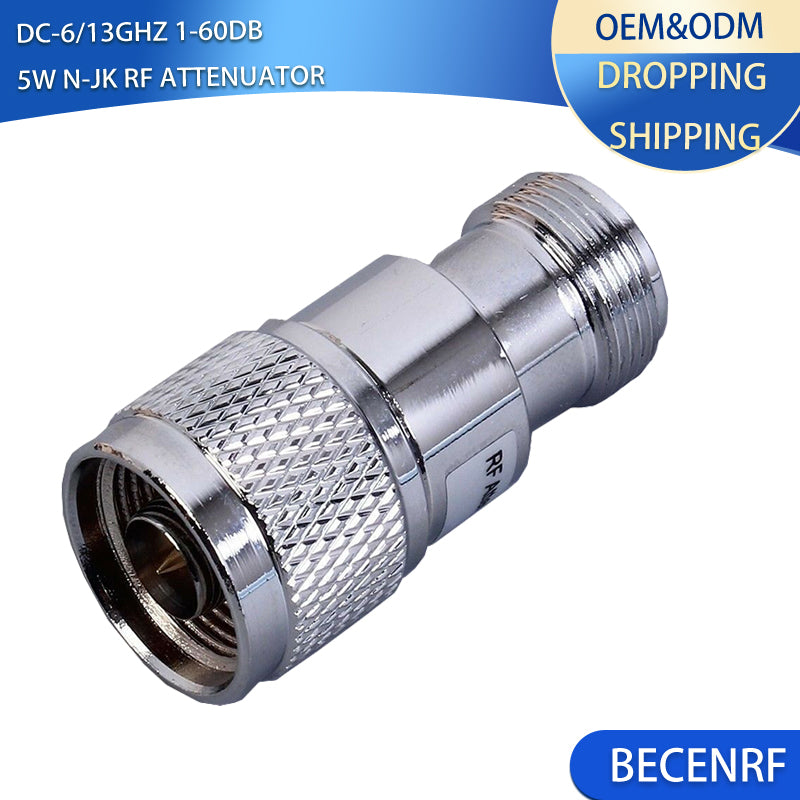

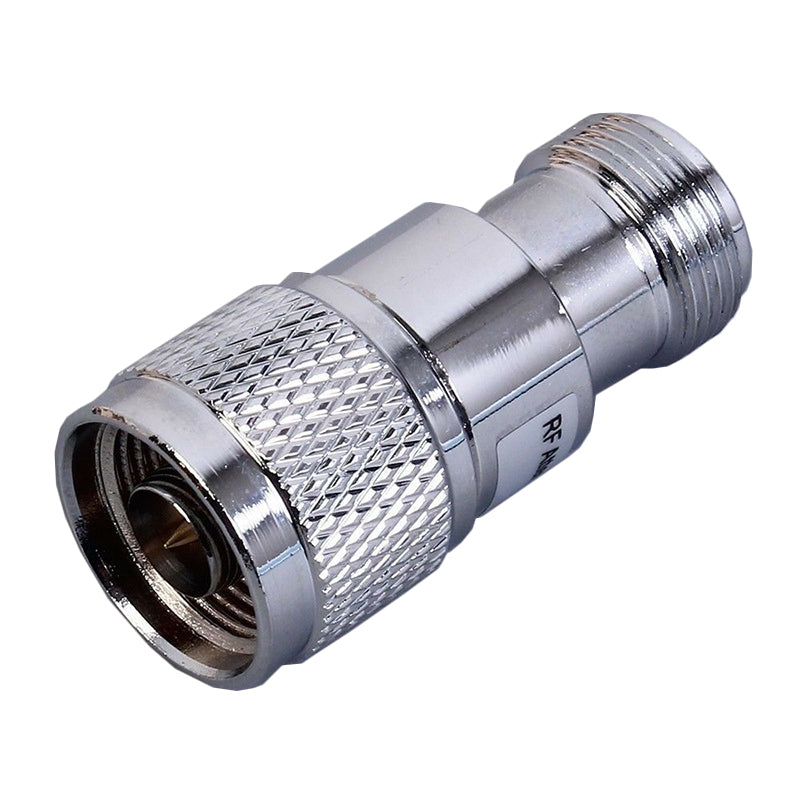

5W N-JK Male to Female RF Fixed Attenuator Connector 6/13G 1dB to 60dB
5W N-JK Male to Female RF Fixed Attenuator Connector 6/13G 1dB to 60dB
Couldn't load pickup availability
|
Frequency Range |
DC-6/13GHz |
|
Attenuation |
1dB to 60dB |
|
Attenuation Accuracy |
+/-0.5dB;30+/-0.8dB;40,50dB+/-1.5dB;60dB+/-1.8dB |
|
VSWR |
<1:1.3 |
|
Power |
5W |
|
Nominal Impedance |
50ohm |
|
Connector type |
N-JK |
|
Size |

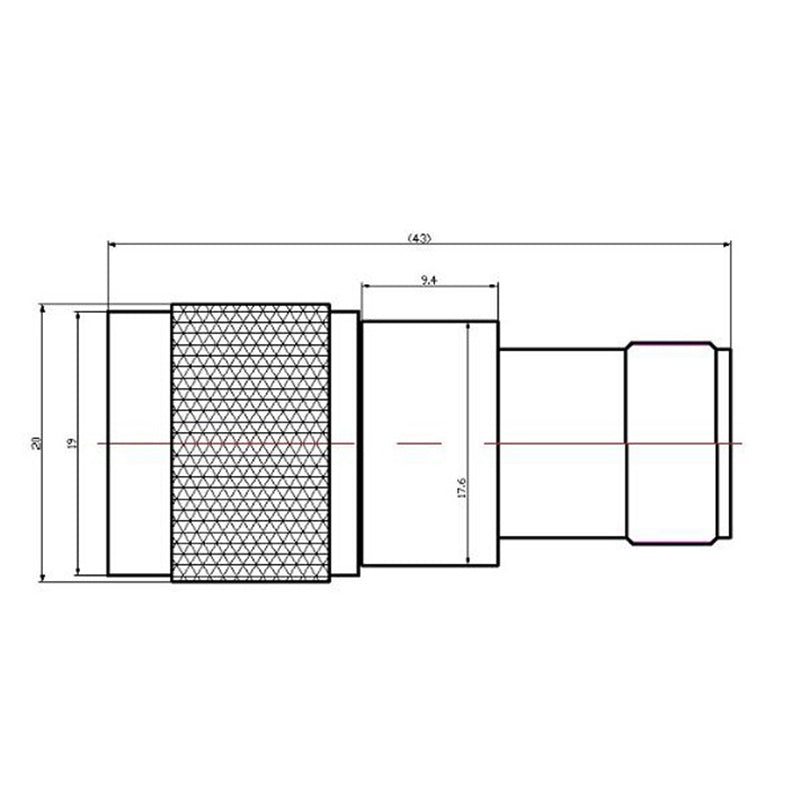

Φ17.5mm×43mm / Φ17.5mm×50mm extend |
|
Operating Temperature |
-20~115℃ |
