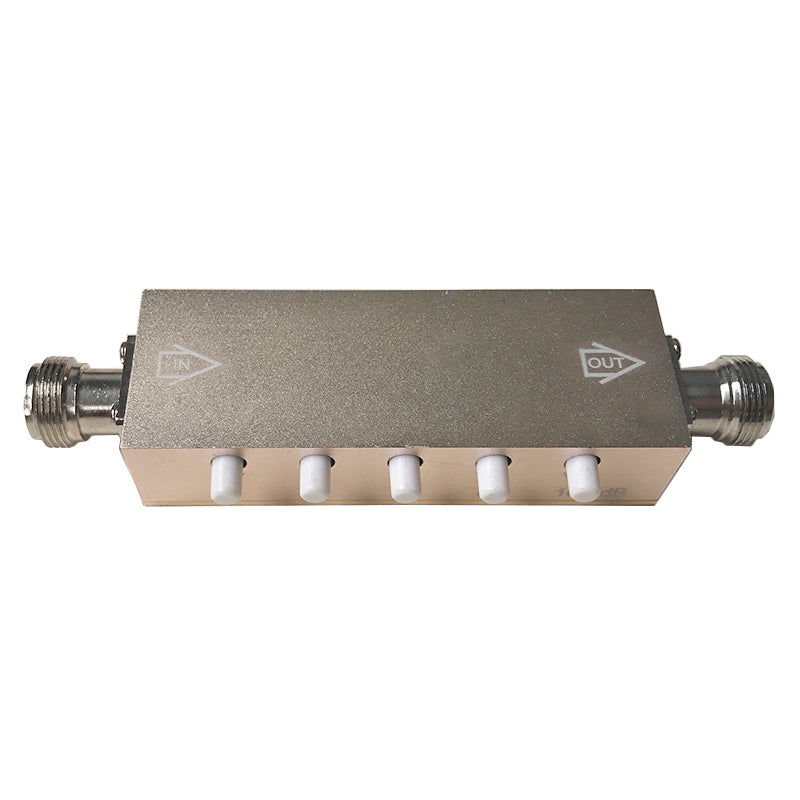

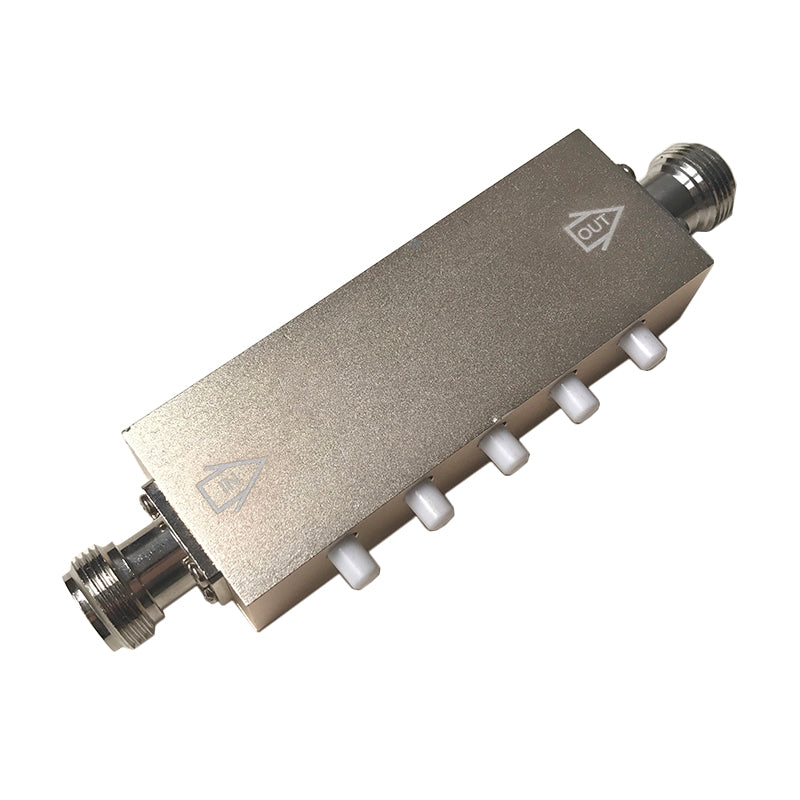

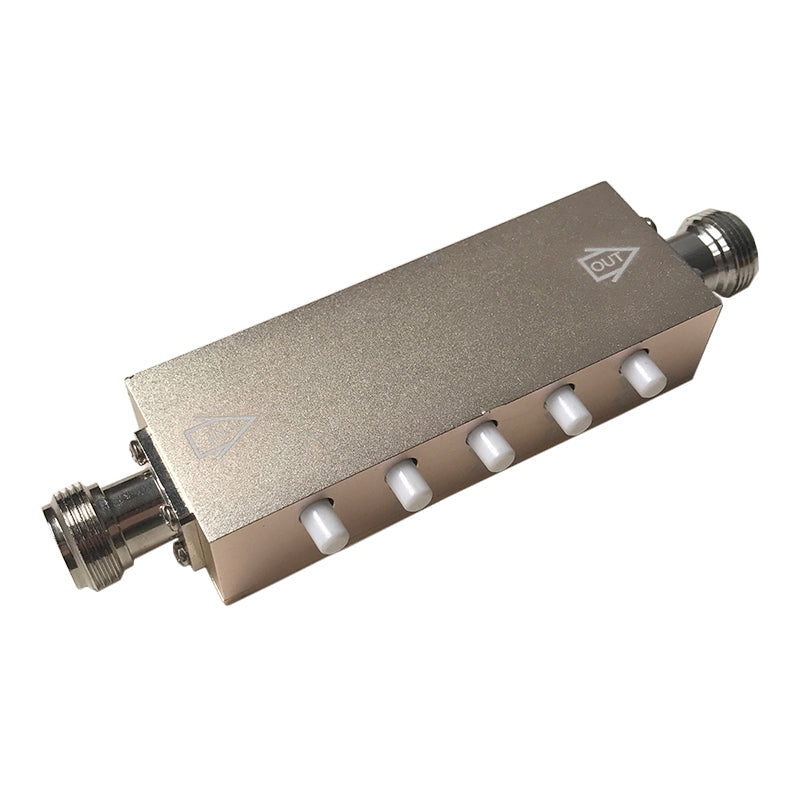

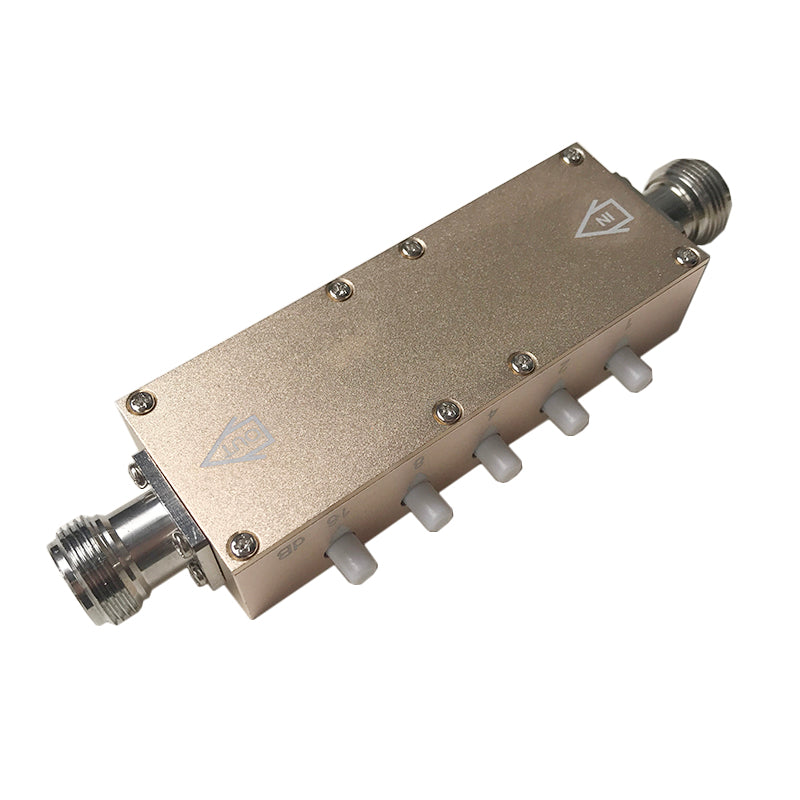

2W/5W 5 key Press N-KK 30dB rf Variable Attenuator
2W/5W 5 key Press N-KK 30dB rf Variable Attenuator
Couldn't load pickup availability
Specification |
Parameter |
|---|---|
Model |
BC-SA05-01 |
Power |
2W/5W step attenuator |
Connector |
N-KK |
Frequency Range |
DC-2.5G/3GHz/4GHz |
Attenuation |

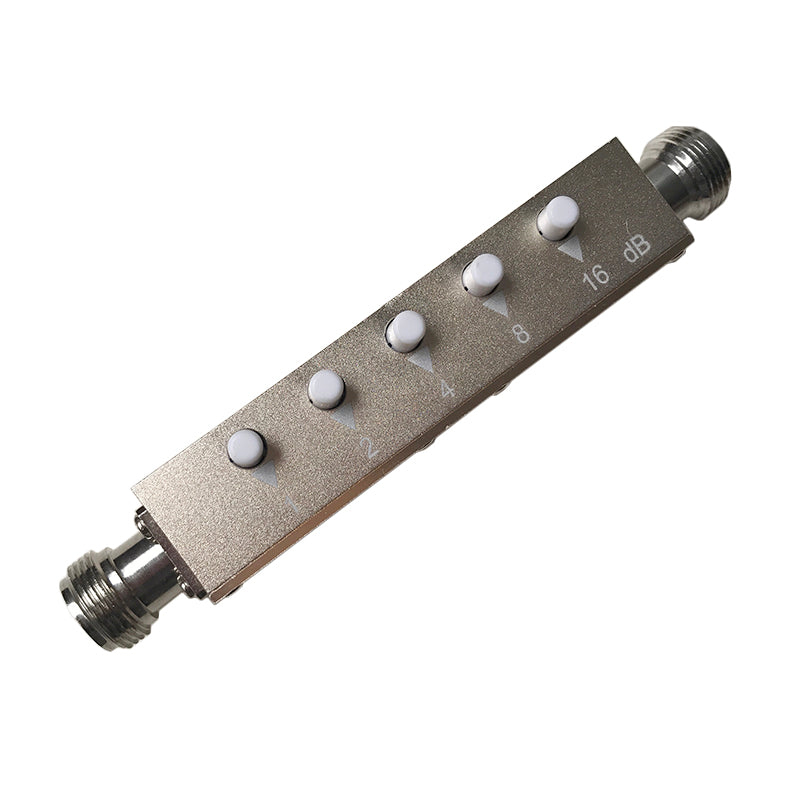

1.2.4.8.16dB 1dB step, 0-10dB.±0.8dB,10-30dB±1.3dB |
VSWR (MAX) |
1.2:1 |
Impendance |
50Ω |
Insertion Loss |
≤2.5dB |

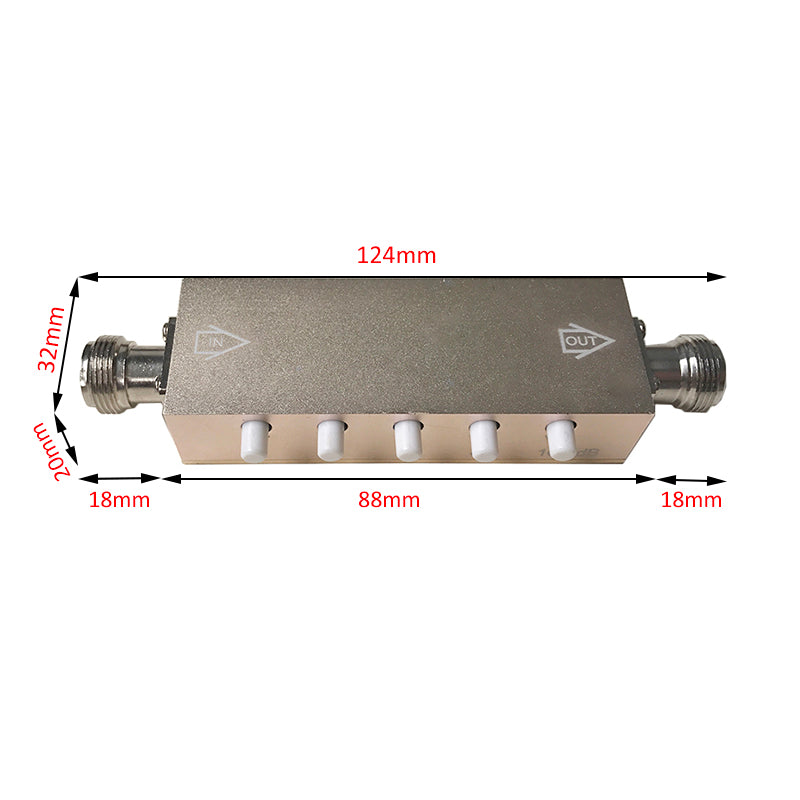

Dimension |
107.2*31.5*19.9mm |
Weight |
0.109Kg |
