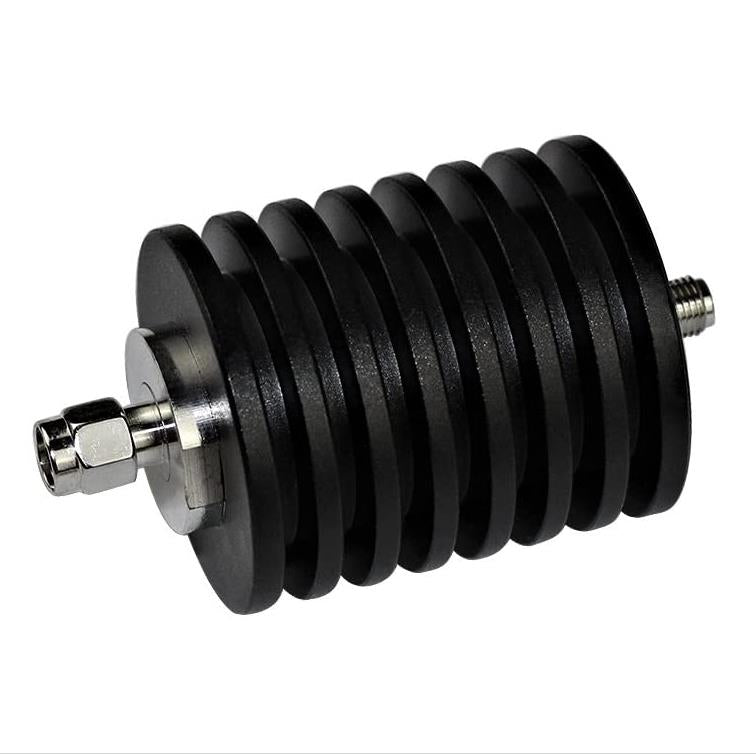

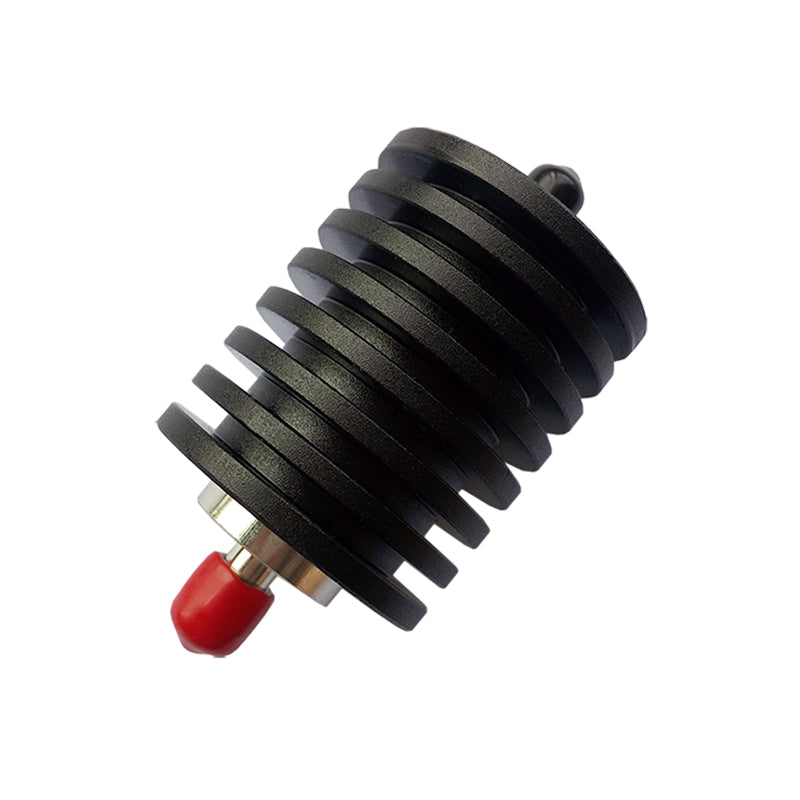

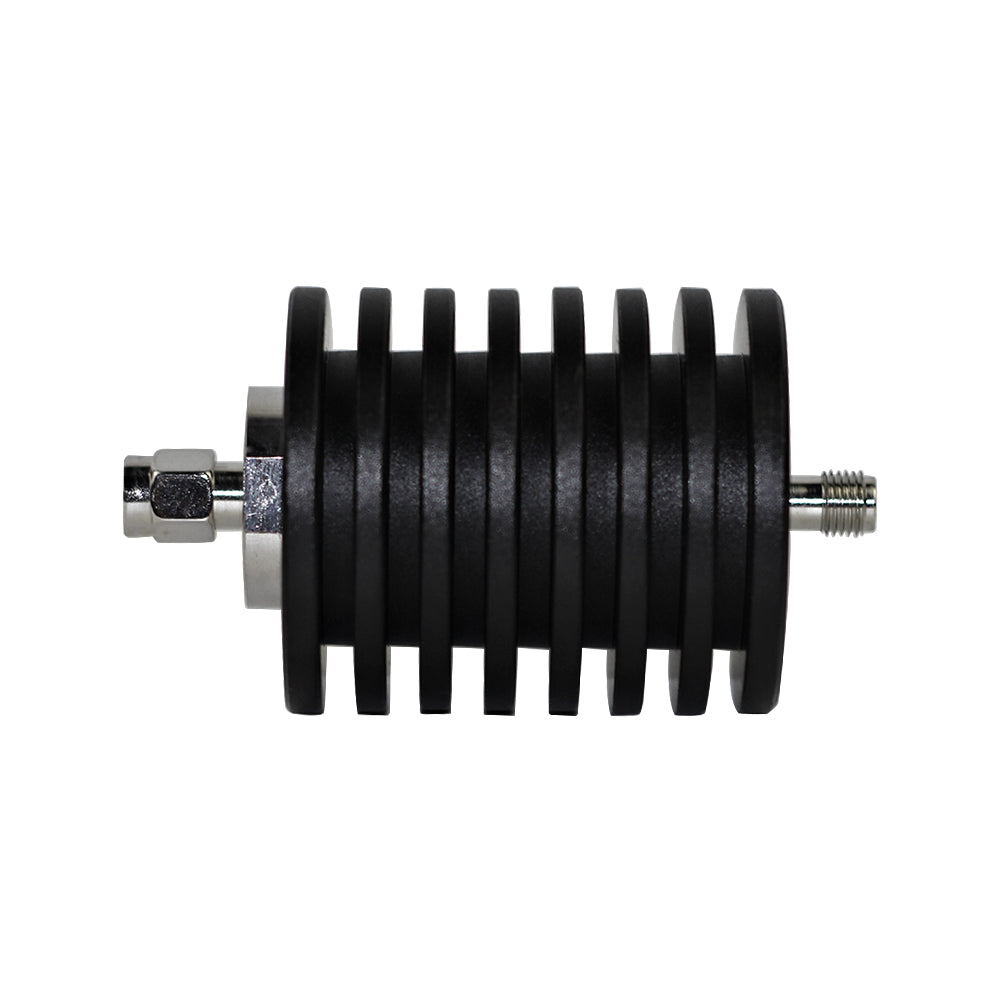

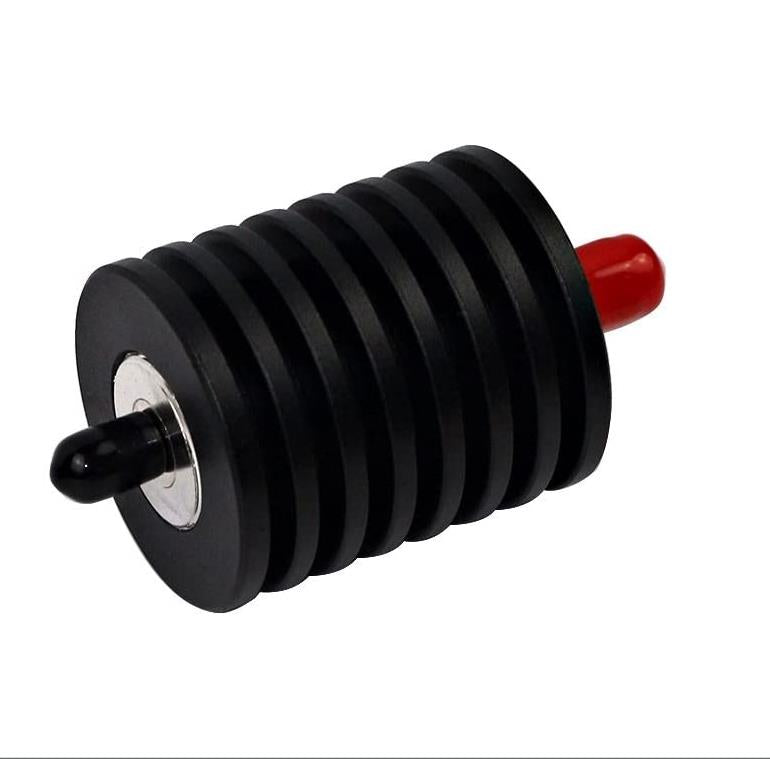

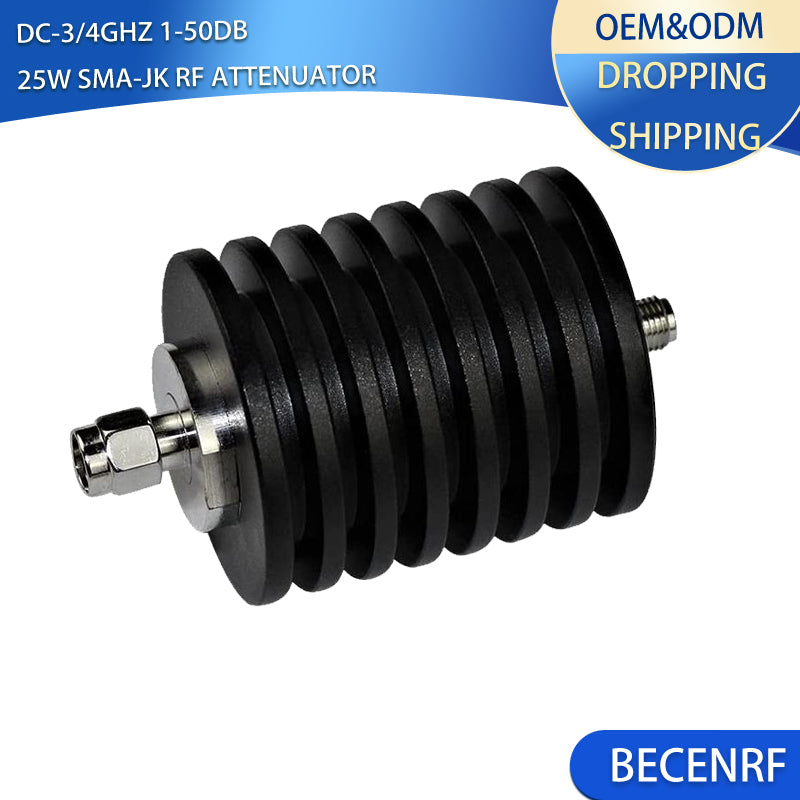

25W SMA-JK Attenuators DC-3GHz/4GHz 1-50dB 50ohm
25W SMA-JK Attenuators DC-3GHz/4GHz 1-50dB 50ohm
Couldn't load pickup availability
| Specification | Parameter |
|---|---|
| Model | BC-AT25-02 |
| Power | 25W |

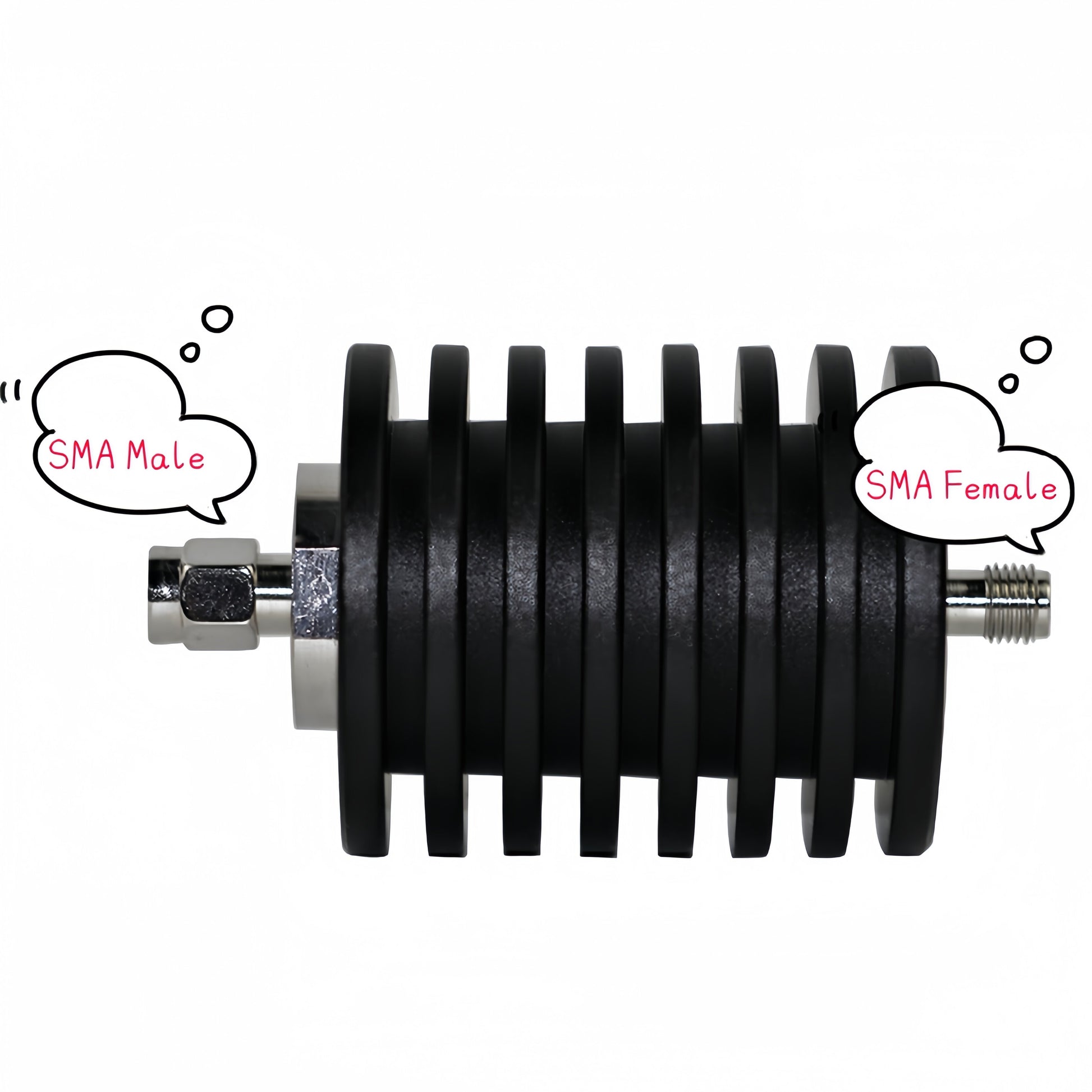

| Connector | SMA-JK |
| Frequency Range | DC-3GHz/4GHz |
| Attenuation | 1-50dB available, and 1-10dB.±0.5dB,15-50dB±1dB |
| VSWR (MAX) | 1.2:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |

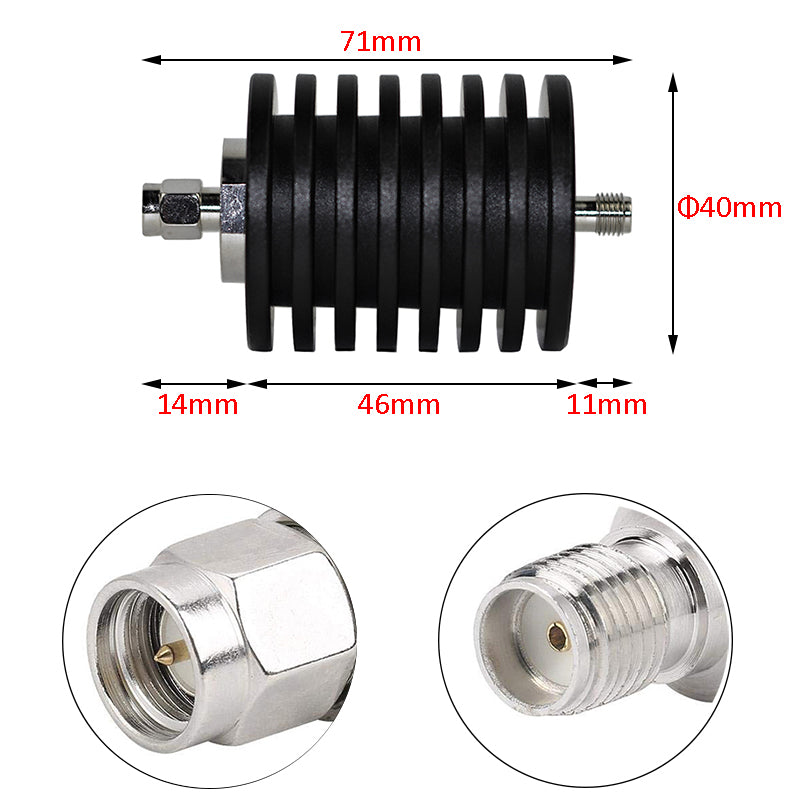

| Dimension | 70*40mm |
| Weight | 0.15kg |
