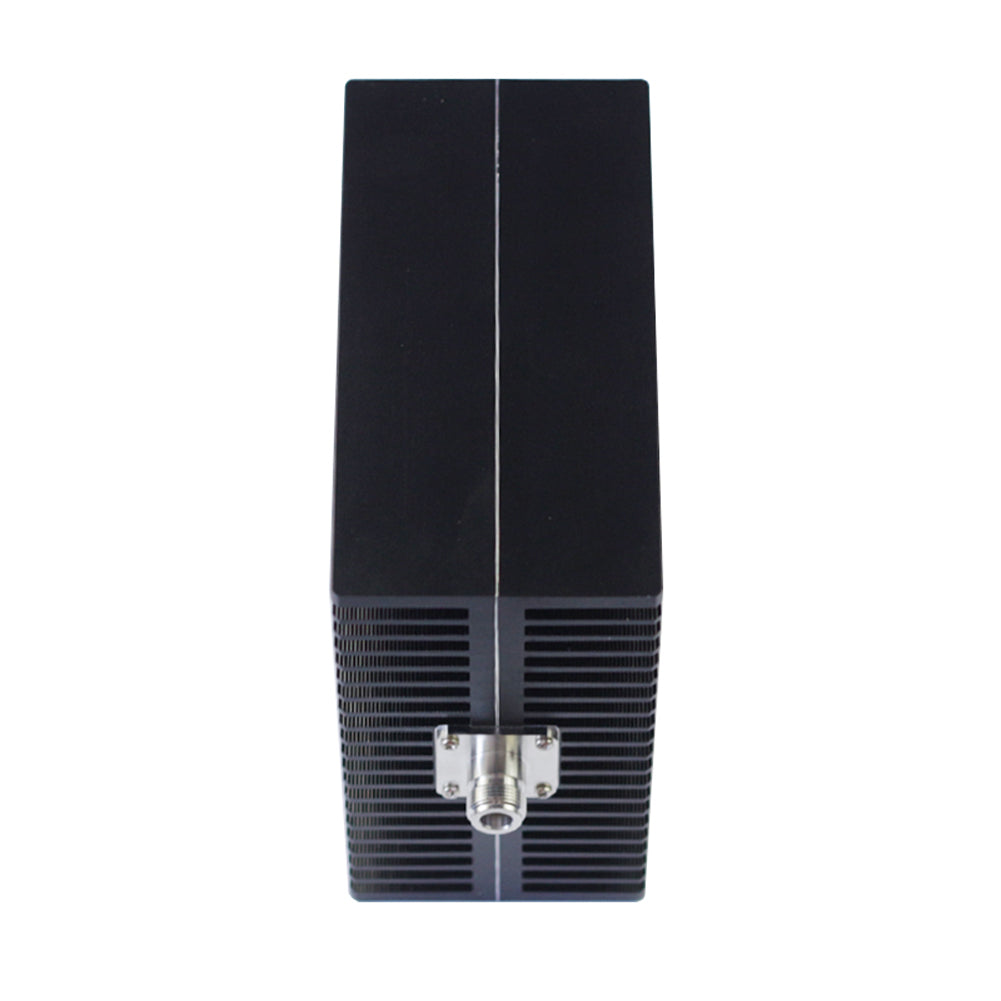

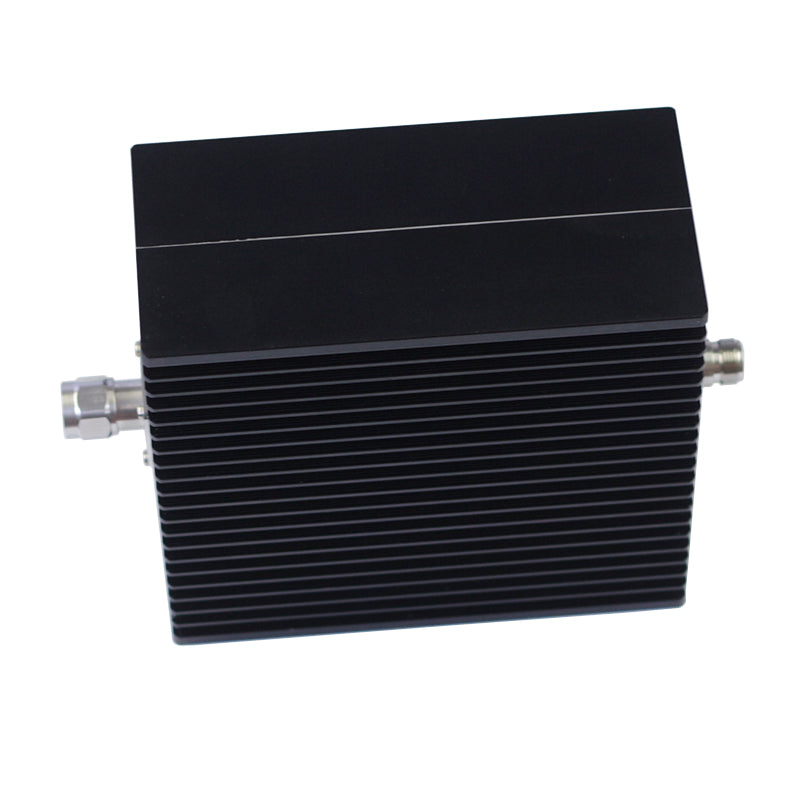

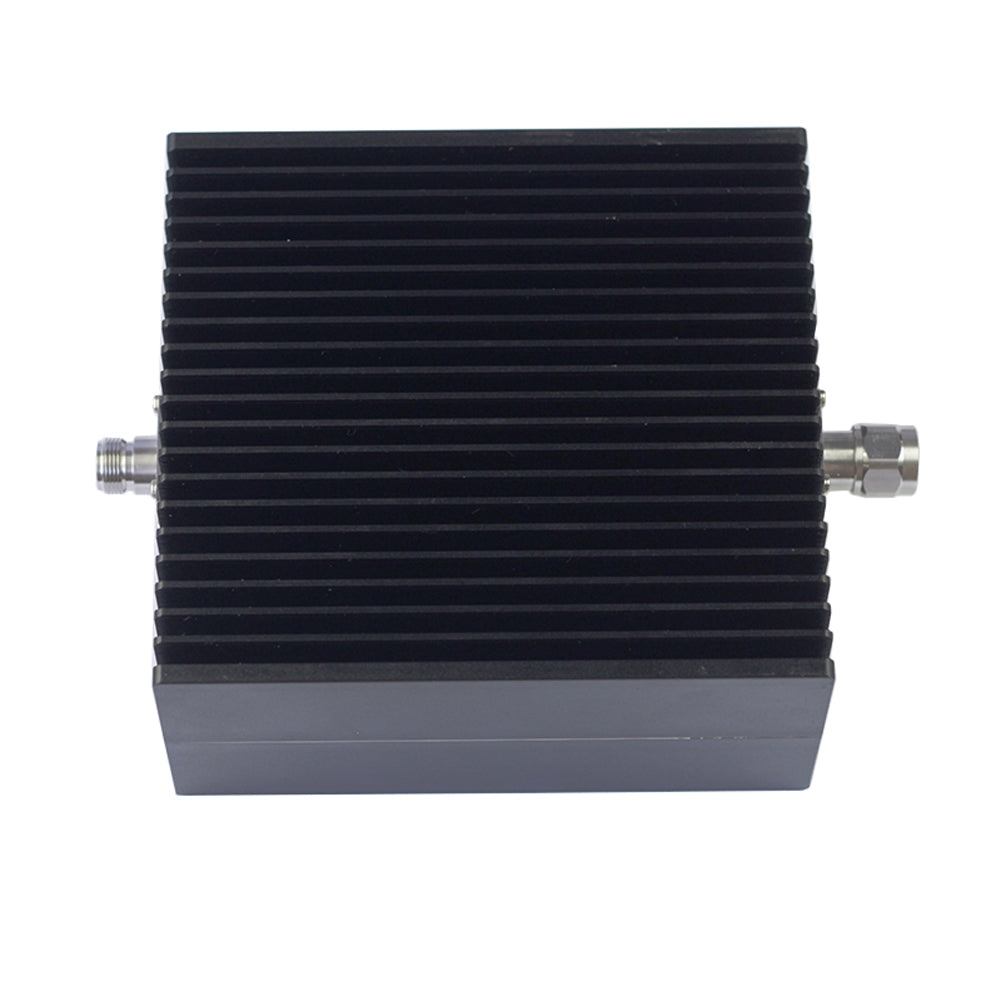

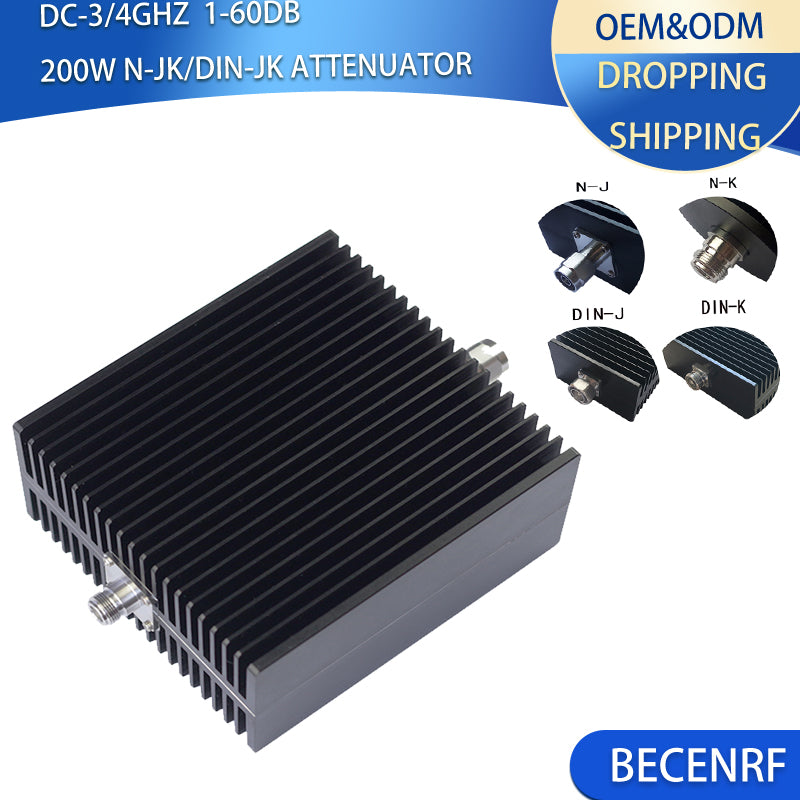

200W N-JK/DIN-JK 7/16 1-60dB RF Coaxial attenuator DC-3GHz/4GHz
200W N-JK/DIN-JK 7/16 1-60dB RF Coaxial attenuator DC-3GHz/4GHz
Couldn't load pickup availability
| Specification | Parameter |
|---|---|
| Model | BC-AT200-01 |
| Power | 200W |
| Connector | N-JK/DIN-JK |
| Frequency Range | DC-3GHz/4GHz |
| Attenuation | 1-60dB available, and 1-10dB.±0.5dB,15-30dB±1dB, 40-60dB±2dB |
| VSWR (MAX) | 1.2:1/1.25:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |

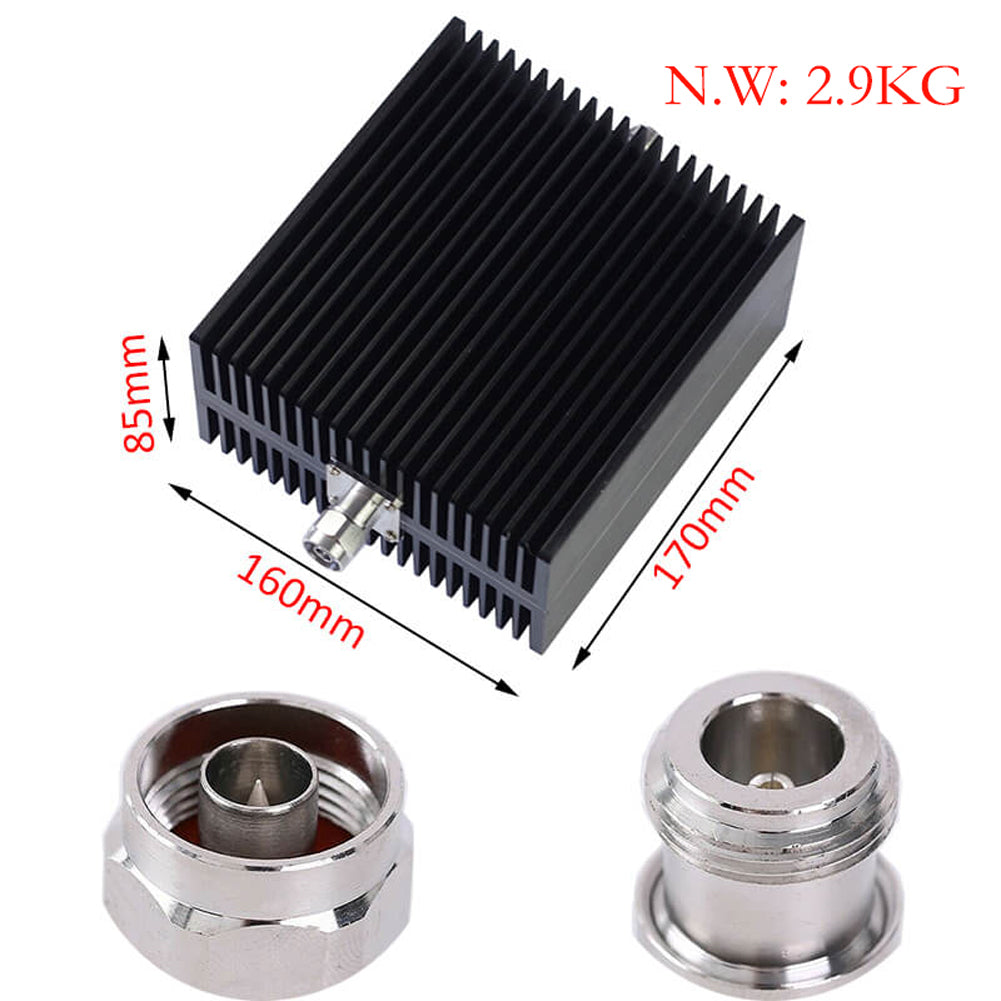

| Dimension | 178x160x85mm |
| Weight | 2.9Kg |
