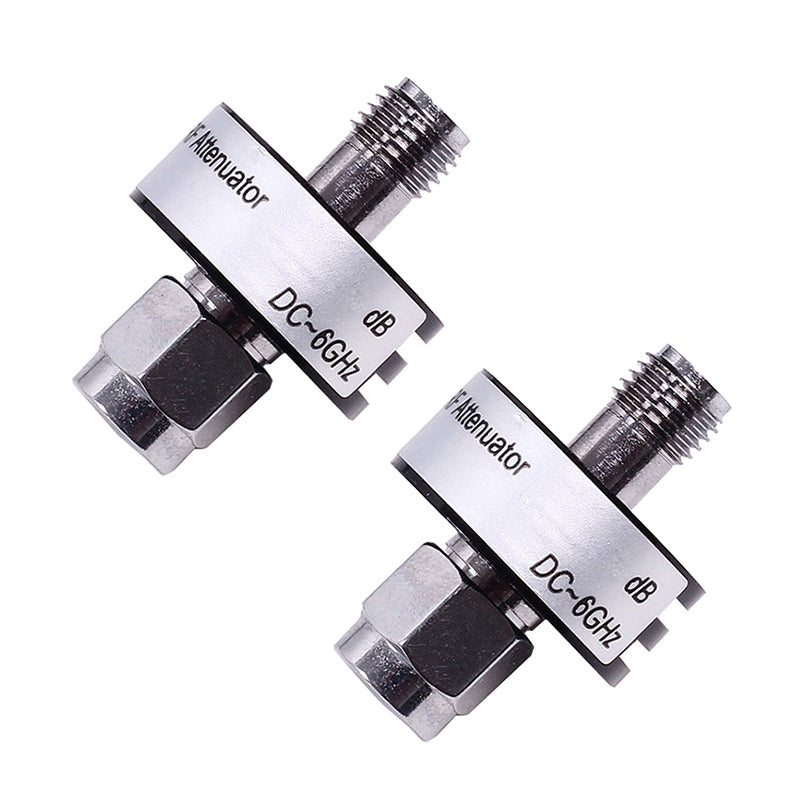

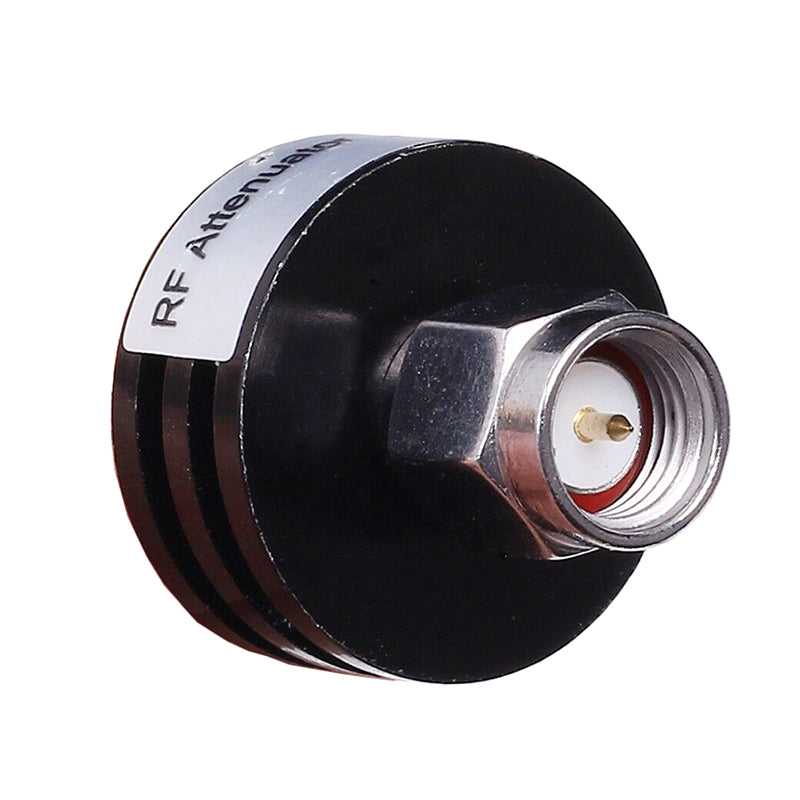

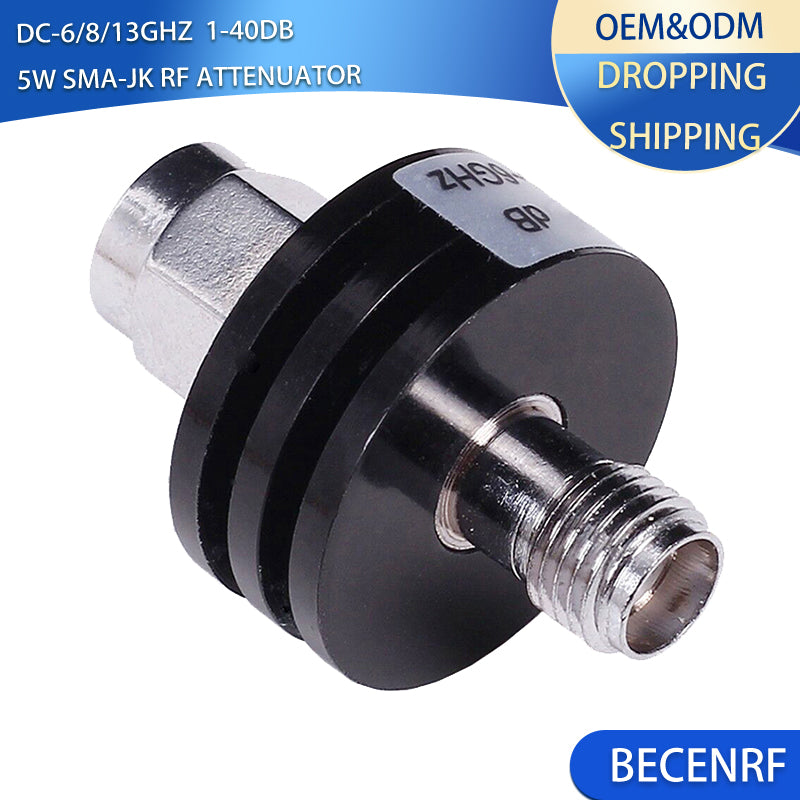

1pcs 5W SMA-JK Male to Female RF Coaxial Attenuator 6G/8G/13G 1-40dB
1pcs 5W SMA-JK Male to Female RF Coaxial Attenuator 6G/8G/13G 1-40dB
Couldn't load pickup availability
|
Frequency Range |
DC-6/8/13GHz |
|
Attenuation |
1dB to 40dB |
|
Attenuation Accuracy |
+/-0.5dB; 30dB+/-1dB; 40+/-1.5dB; (5-40dB,13G)+/-1.8dB;(10-40dB,18G)+/-1.8dB; |
|
VSWR |
<1:1.3 |
|
Power |
5W |
|
Nominal Impedance |
50ohm |
|
Connector type |
SMA-JK |
|

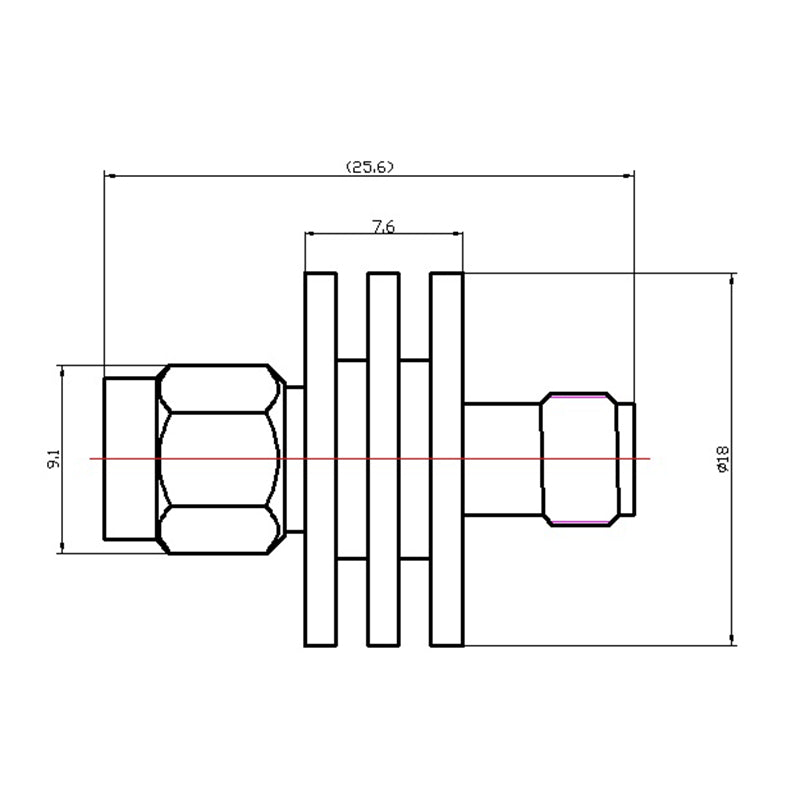

Size |
Φ18×26mm |
|
Operating Temperature |
-20~115℃ |
